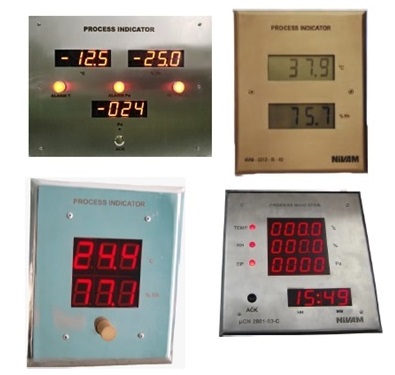

Process Indicators :
4 –20 mA/ 0 –10 VDC / Sensor Input
Power Supply : 24V AC/DC (230 VAC On Request)
Available in Single / Dual / Triple Parameter Display
Fully configurable through keypad
Accuracy better than ±0.25% FSD
PC Communication –RS232 / RS485 MODBUS RTU Protocol (Optional)
Alarm Indications (Optional)
Synchronized Real Time Clock (Optional)
Available in 3½/4 digits 0.5”/1”/2”/4” LED display
Available in Wall Surface / Inside Wall or Partition Mounting
Available in Ex-Proof Enclosures CMRI Certified

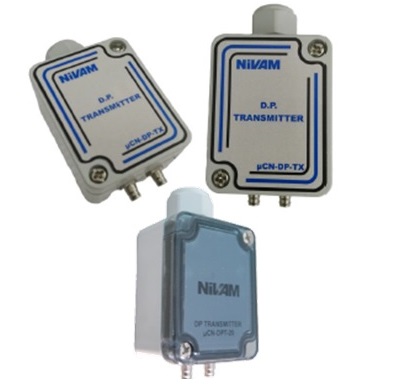

Differential Pressure Transmitters :
Inbuilt D.P. Sensor
Power supply : 24 VDC ±10%
0-10 Vdc/ 4-20 mAOutput
Surface / Duct Mounting
Pressure Ranges 0 –50 / 0 -100 & 0 –200 Pa
(Other Ranges on request)
Enclosure with IP 65 Classification
Accuracy: 2 % of FSD
Molded Box in ABS Plastic
Available in Ex-Proof Enclosures CMRI Certified
Temperature / Humidity Transmitters:
Inbuilt T/RhSensor
Power supply : 24 VDC ±10%
0-10 Vdc/ 4-20 mAOutput
Surface / Duct Mounting
4-20 mA–2 wire version also available
Enclosure with IP 65 Classification
Molded Box in ABS Plastic
Range –0-50 Deg. C / 0-100 % Rh
Accuracy: 0.5 % for Temp & 3 % for Rh
Available in Ex-Proof Enclosures CMRI Certified
Real Time Clocks :
Power Supply : 24V AC/DC (230 VAC On Request)
Available in Hour-Minute / Hour-Minute-Second Display
Display : 0.5” / 1” / 2” / 4” 7 Segment LED
RTC With DATE Available
Synchronized with PC or MASTER RTC over RS485 network
Standalone Operation in case of MASTER Failure
Able to connect up to 64 devices in multidropping mode
Unit MASTER/SLAVE Configurable(Factory Setting)
Wireless option available on request
Available in Wall Surface / Inside Wall or Partition Mounting
Available in Ex-Proof Enclosures CMRI Certified
