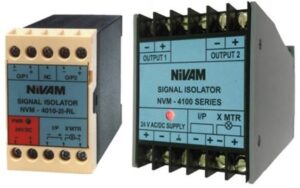

Signal Convertor / Isolator
24 V AC / DC Operation
3 Port Isolation
0 –10V DC / 4 –20mA input
Single / dual Isolated output
Zero Span adjustment
DIN RAIL Mounting Polycarbonate Enclosure
Transmitter Supply (24 V DC @ 30mA) (Optional)
Compact & Sturdy

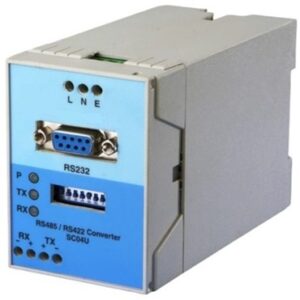

RS 485 to RS 232 Convertor
INPUT / OUTPUT : RS 232
OUTPUT / INPUT : RS485 / RS422. 2 Wire & 4 Wire
SPEED : 1200 to 115000 bps
CABLE DISTANCE : 1200 m
INDICATION : LED’s for TX & RX and Power
ENCLOSURE : ABS, DIN Rail Mounting
OPTICAL ISOLATION : 3000 V DC for both RS232 & RS485
POWER SUPPLY : 230 VAC, 50 Hz
